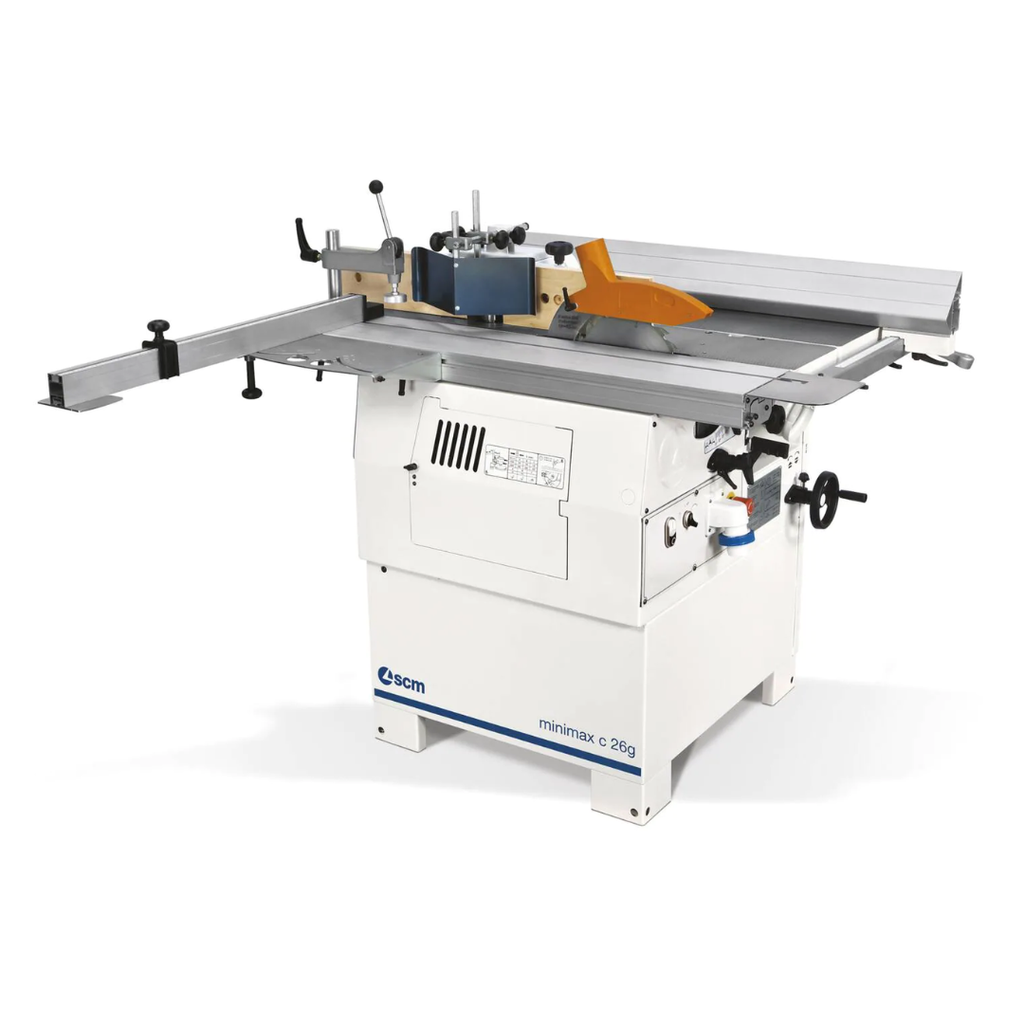

SCM Minimax C26 Genius Combination Machine

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.

This combination does not exist.

Add To Cart

Brand: SCM

TECHNICAL FEATURES
Planer:
– Useful working width	[mm]	260
– Cutter block diameter	[mm]	62
– Max. stock removal	[mm]	3
– Surfacing tables total lenght	[mm]	1040
– Thicknessing table dimensions	[mm]	260 x 450
– Feed speed on thicknesser	[m/min]	6
– Min. ÷ max. working height on thicknesser	[mm]	3 ÷ 200
Circular saw:
– Cast iron saw-spindle moulder worktable dimensions	[mm]	1024 x 224
– Blade tilting		90° ÷ 45°
– Max. saw blade diameter	[mm]	250
– Max. saw blade projection from table at 90°/45°	[mm]	80/64
– Max. squaring stroke	[mm]	1200
– Cutting width on parallel fence	[mm]	500
Spindle moulder:
– Max. useful spindle lenght	[mm]	75
– Spindle moulder speeds (at 50 Hz)	[rpm]	5000/7500
– Max. tool diameter when profiling	[mm]	160
– Max. Ø of tool lowered under the table at 90°	[mm]	145
Other technical features:
– Single-phase motors		1,8kW (2,5hp) 50Hz (15amp)
– Exhaust outlets diameter	[mm]	120
Spindle moulder available with following diameters:		30 mm, 1 1/4″

Weight	267 kg
Dimensions	130 × 93 × 112 cm
