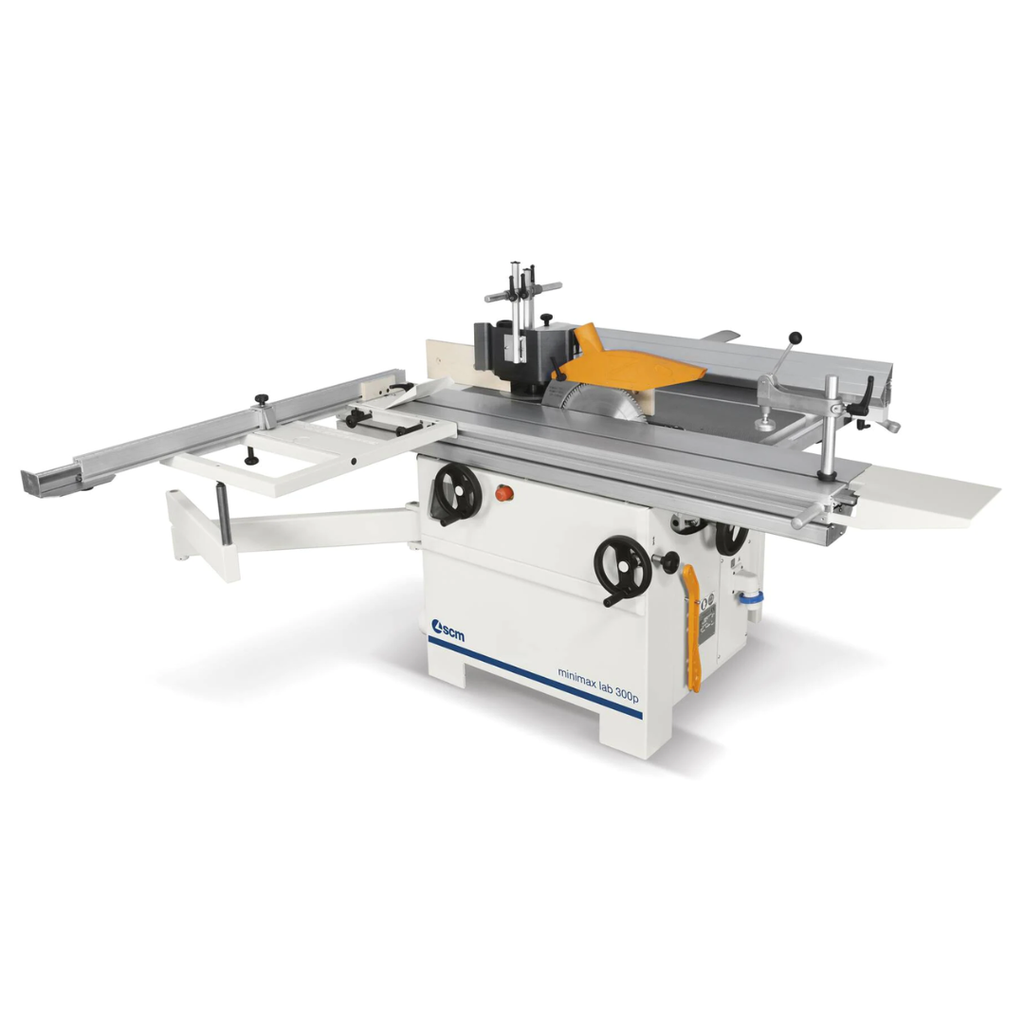

SCM Minimax LAB300P Combination Machine

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.

This combination does not exist.

Add To Cart

Brand: SCM

TECHNICAL FEATURES		lab 300p
Planer:
– useful working width	[mm]	300
– cutter block diameter (mm)/n. standard knives		72/3
– standard knives dimensions	[mm]	300 x 30 x 3
– max. stock removal	[mm]	3
– surfacing tables total length	[mm]	1300
– thicknessing table dimensions	[mm]	450 x 300
– feed speed on thicknesser	[m/min]	7
– min. ÷ max. working height on thicknesser	[mm]	3 ÷ 220
Circular saw:
– cast iron saw-spindle moulder worktable dimensions	[mm]	1020 x 325
– blades tilting		90° ÷ 45°
– max. saw blade Ø with scoring blade installed	[mm]	315
– max. saw projection from table at 90°/45°	[mm]	100/78
– maximum squaring stroke	[mm]	1600
– cutting width on parallel fence	[mm]	800
Spindle moulder:
– max. useful spindle length	[mm]	100* (70mm with ¾ spindle)
– spindle moulder speeds (at 50 Hz)	[rpm]	3500/7500/10.000
– max. tool diameter when profiling	[mm]	210
– max. Ø of tool lowered under the table at 90°	[mm]	180
Other technical features:
– three-phase motors		4kW (5,5hp) 50Hz –
Or – single-phase motors		2.2kW (3hp) 50Hz –
exhaust outlets diameter	[mm]	120
Spindle moulder available with following diameters:		30 – 32 – 35 – 40 – 50 mm 3/4″ – 1″ – 1 1/4″

Weight	485 kg
Dimensions	195 × 115 × 118 cm
