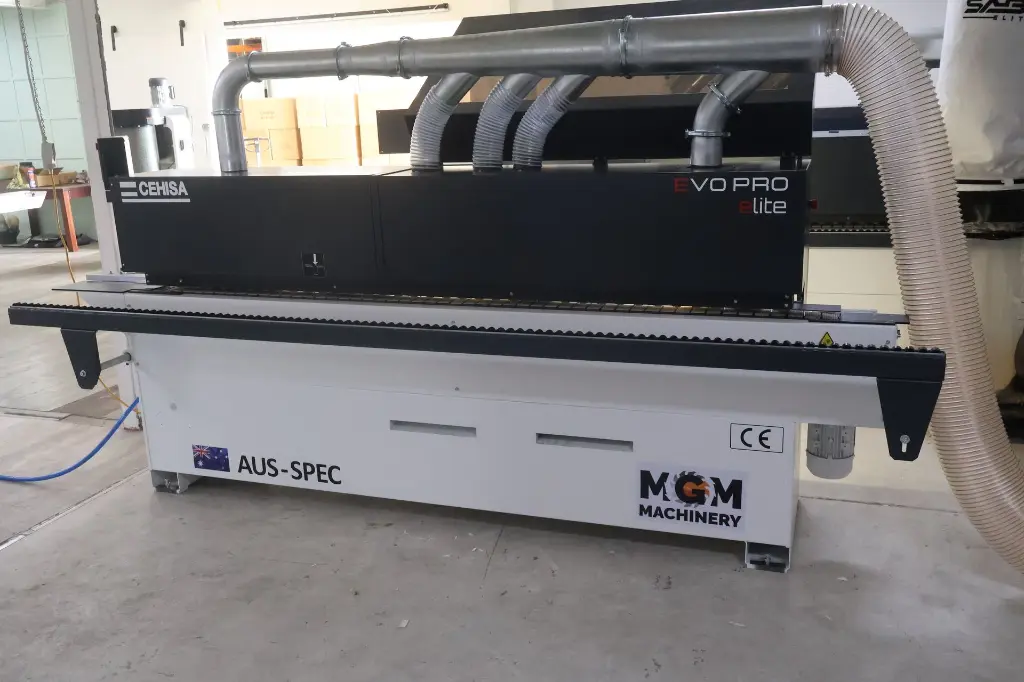

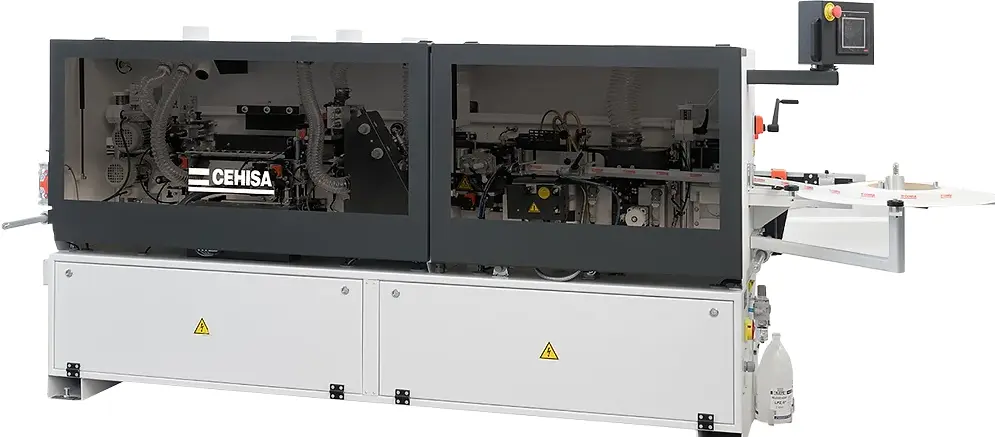

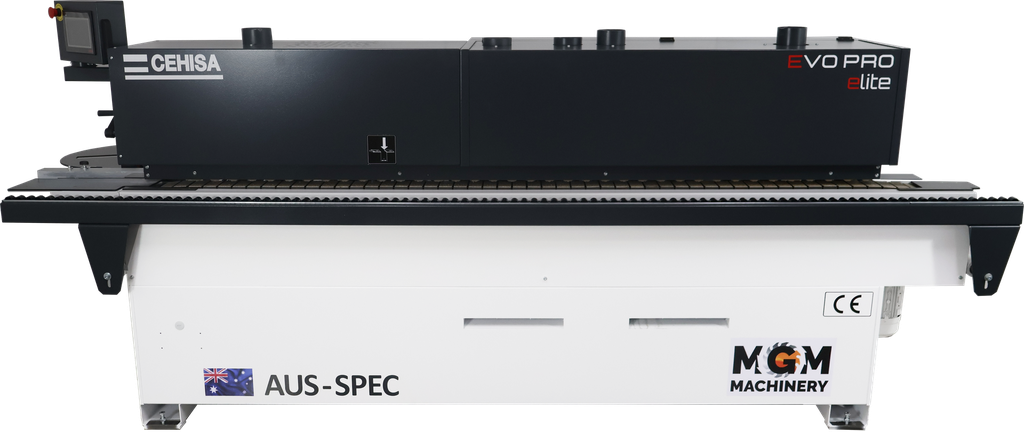

CEHISA EVO PRO ELITE

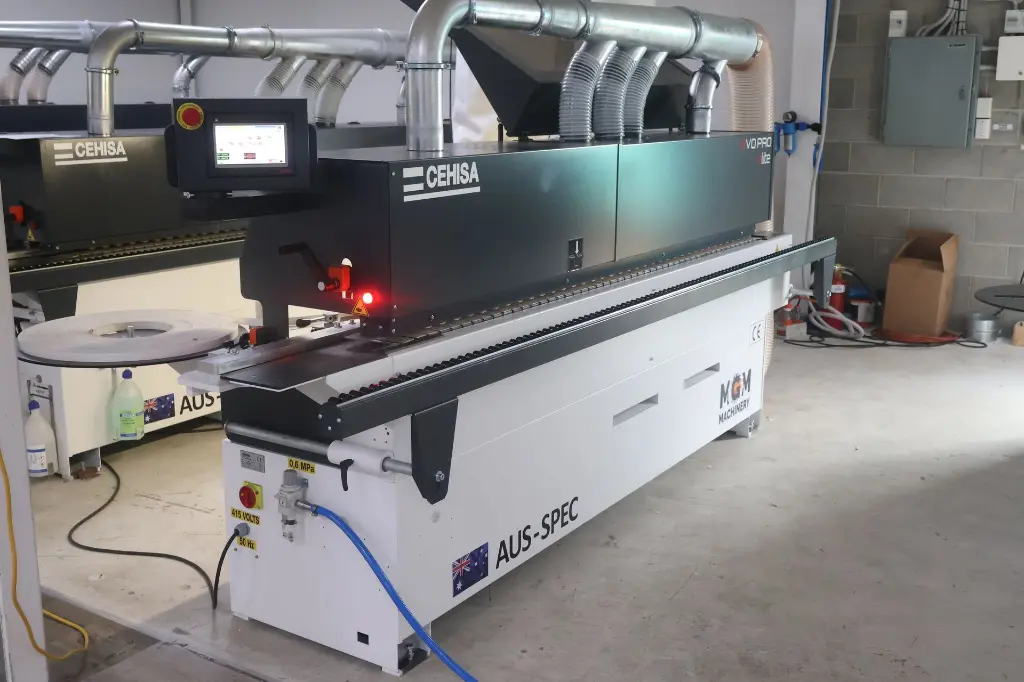

Cehisa Evo Pro Elite — Feature-Rich, Cost-Effective
Maximize your workshop potential affordably with The Evo Pro Elite: Unleashing Precision, Power, and Perfection while saving on costs.
The Cehisa Evo Pro Elite capabilities that outshine its price point. Packed with essential features demanded by the market and customers, it includes Diamond Pre-millers with interchangeable tips, an efficient Hot Melt glue system, Twin end saws, Top and bottom radius trimmers, Corner rounding, and final radius and flat scraping functionalities.
|
|
|
|
|
|
| |
|

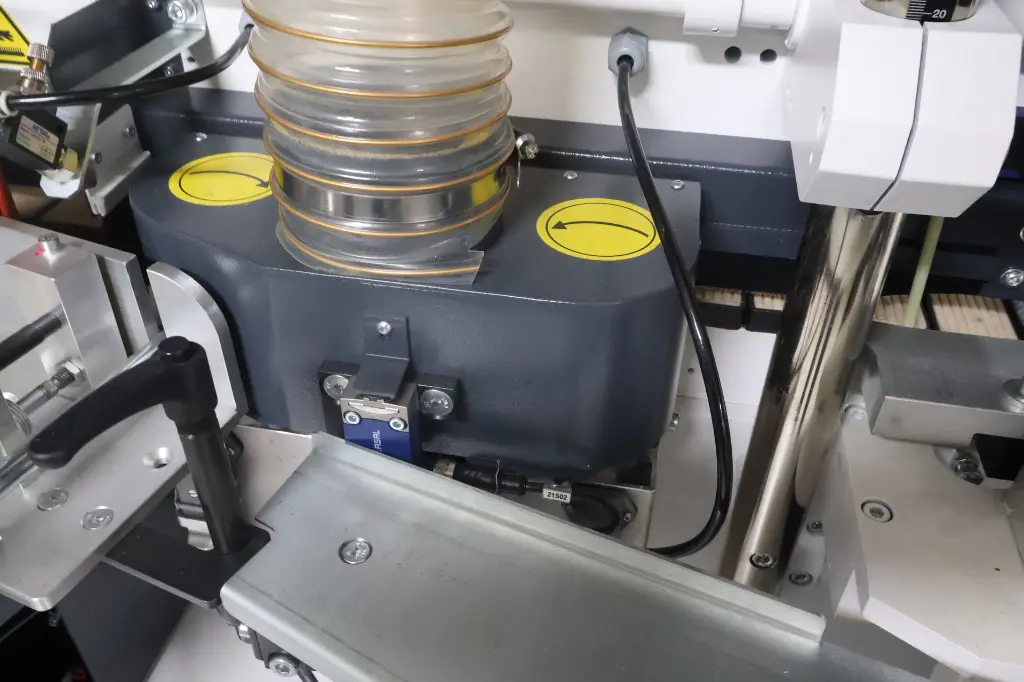

Pre-Milling
|
|
CEHISA, a Spanish company, has specialized in manufacturing woodworking machinery, particularly in the edge banding sector, since 1968. Founded by carpenter Manuel Cuenca, CEHISA started by designing durable, compact machines that revolutionized the industry with their practicality. Today, the reliability of CEHISA machines is ensured through careful component selection, in-house manufacturing, and customized after-sales service. High-quality components are sourced from top providers or produced internally to meet strict industrial standards
See Cehisa Machines
| Brand: Cehisa |

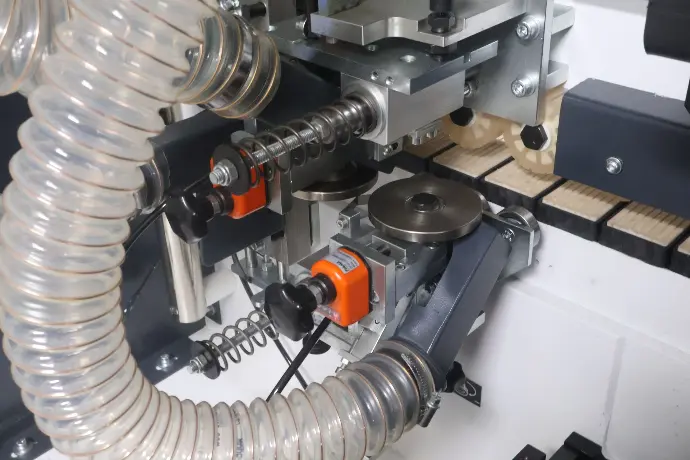

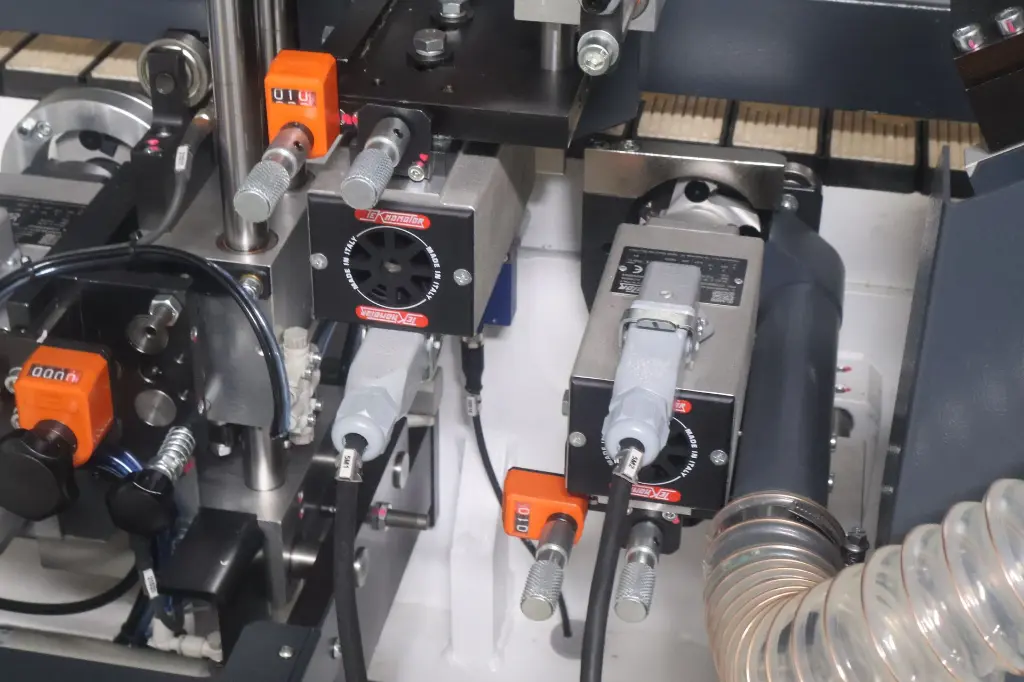

Radius Scrapers
This unit refines the edge radius after top and bottom trimming to achieve a smooth, clean finish. Precision horizontal and vertical tracers with SIKO digital counters allow quick and accurate setup, while integrated air nozzles keep the tracers clean during operation. Built-in waste extraction ensures efficient chip removal, and quick-change blade holders make tool changes fast and simple.

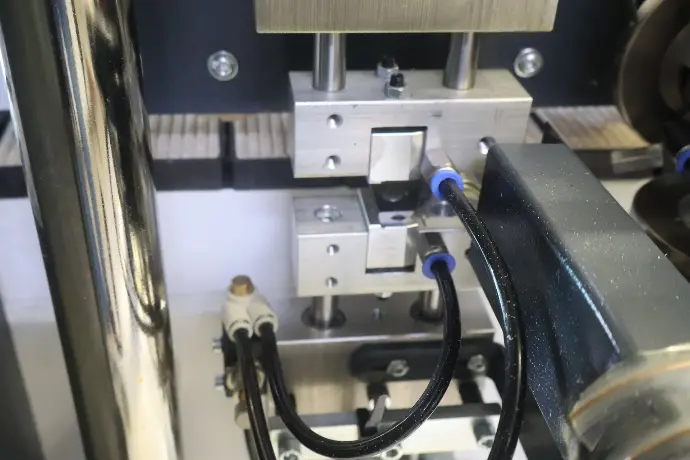

Flat Scrapers
The unit cleans both the top and bottom panel surfaces to remove any residual glue and deliver a clean finish. Independently adjustable vertical tracers follow the panel surface without causing damage, while a patented blade design prevents contact or scratching. Self-cleaning air nozzles keep the tracers clear during operation, and automatic on/off positioning ensures the unit engages only when required, reducing wear.
Nesting Tracers
The user-friendly interface allows simple navigation for starting, stopping, and adjusting programs, while a direct PLC connection provides real-time monitoring of parameters, alarms, and diagnostics. With 128 MB of memory, the system can store screen settings and job programs, supports multiple languages for ease of use, and includes built-in maintenance reminders that track service intervals and alert operators when attention is required.

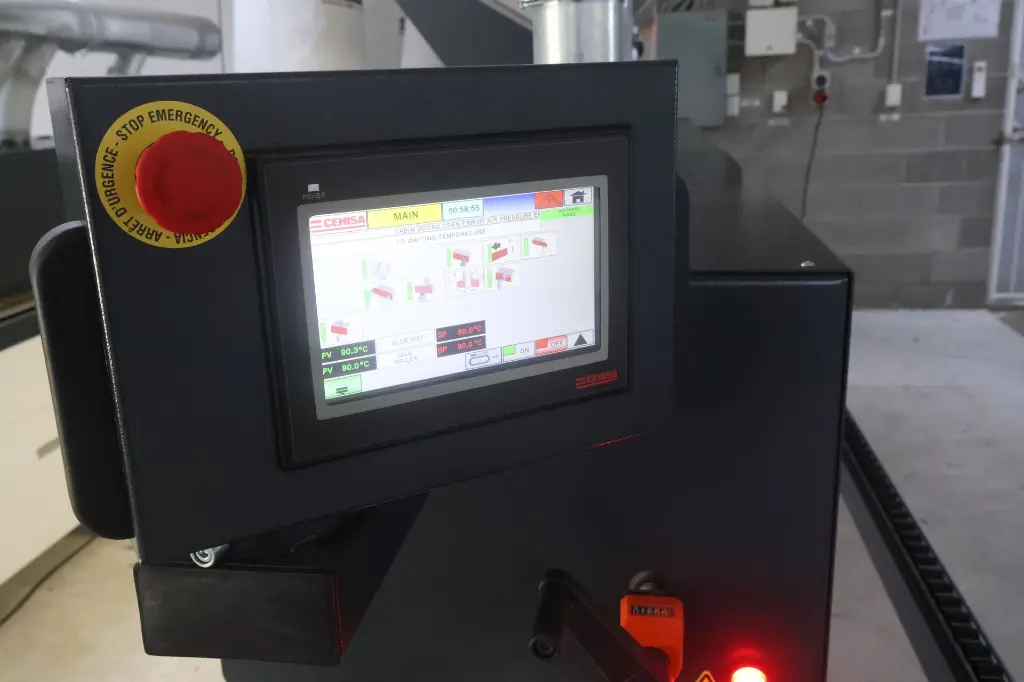

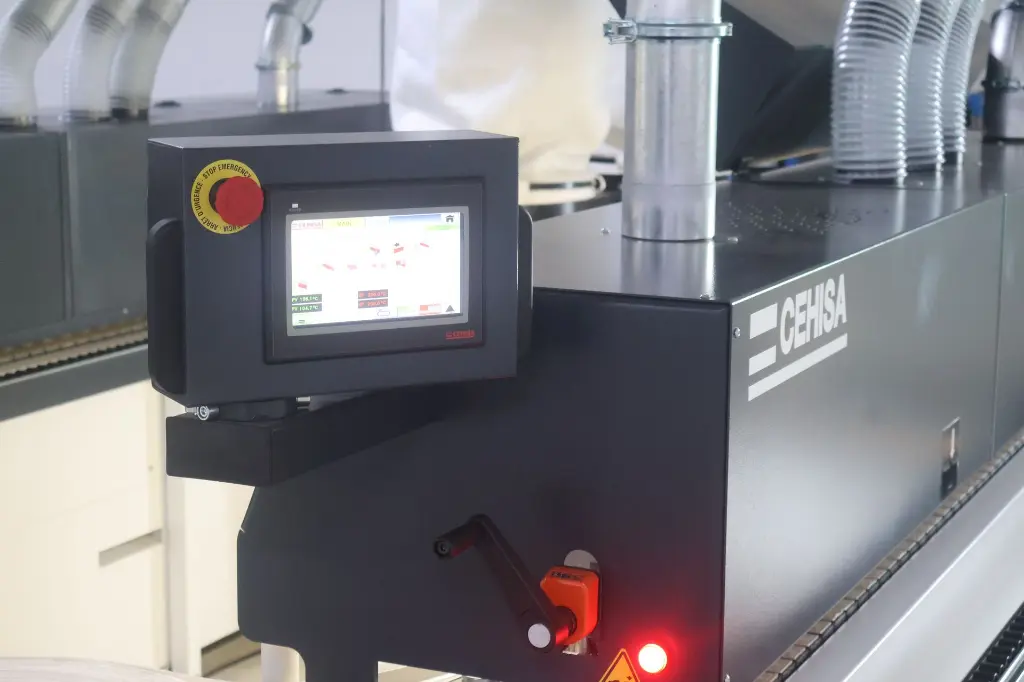

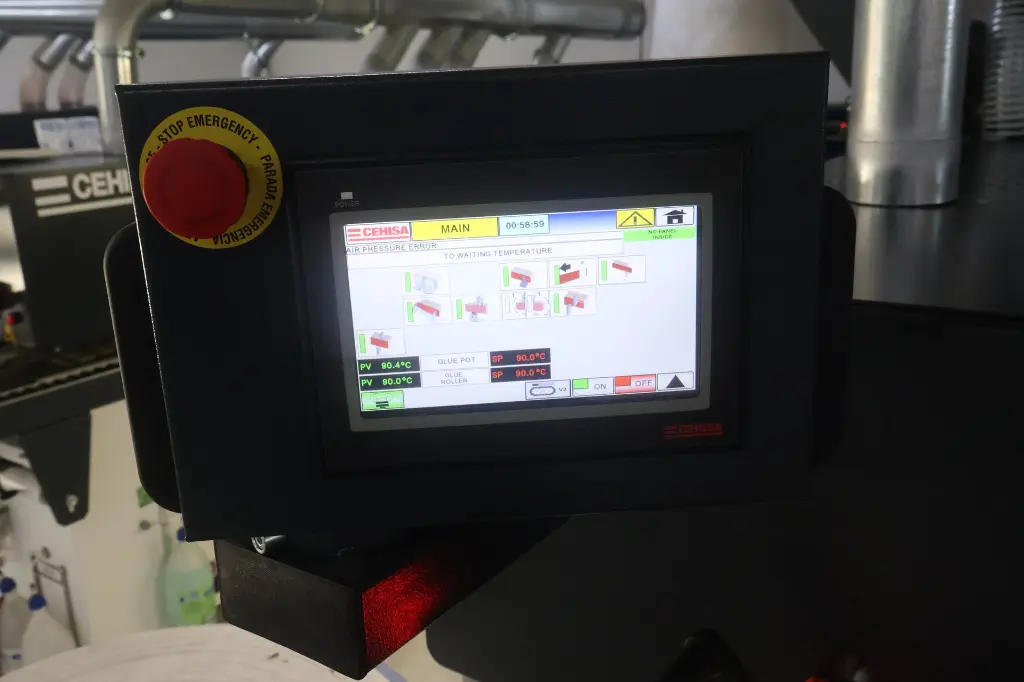

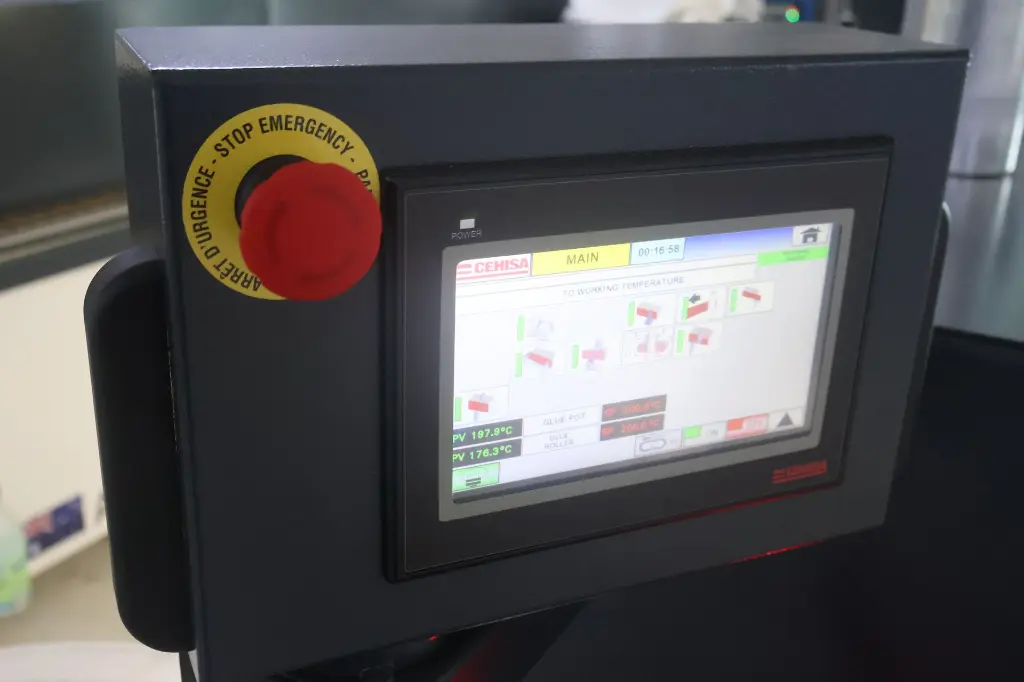

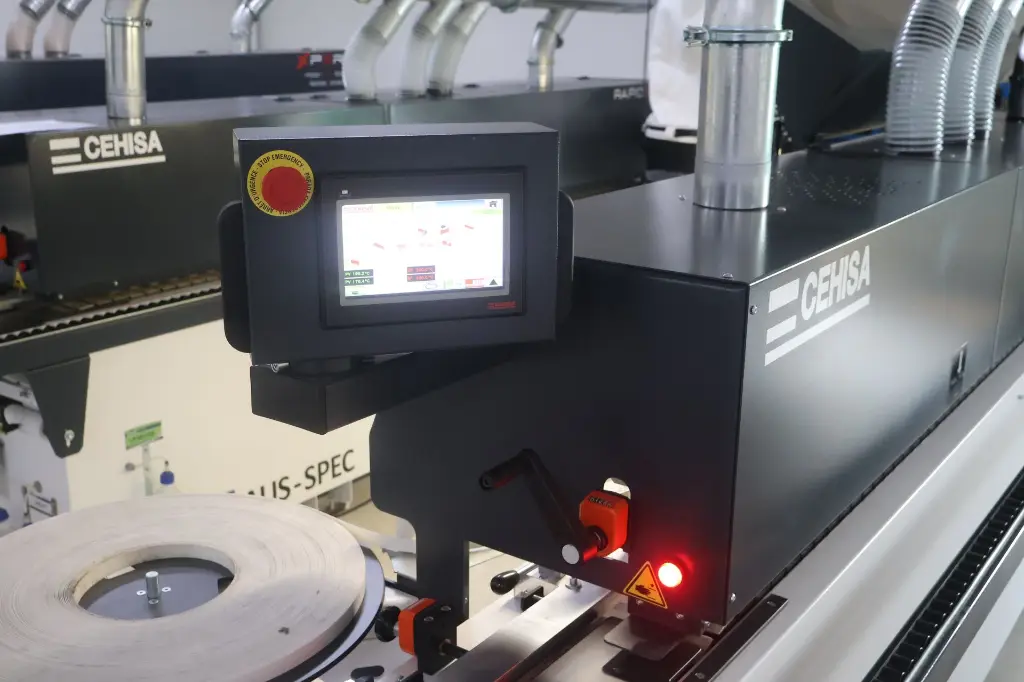

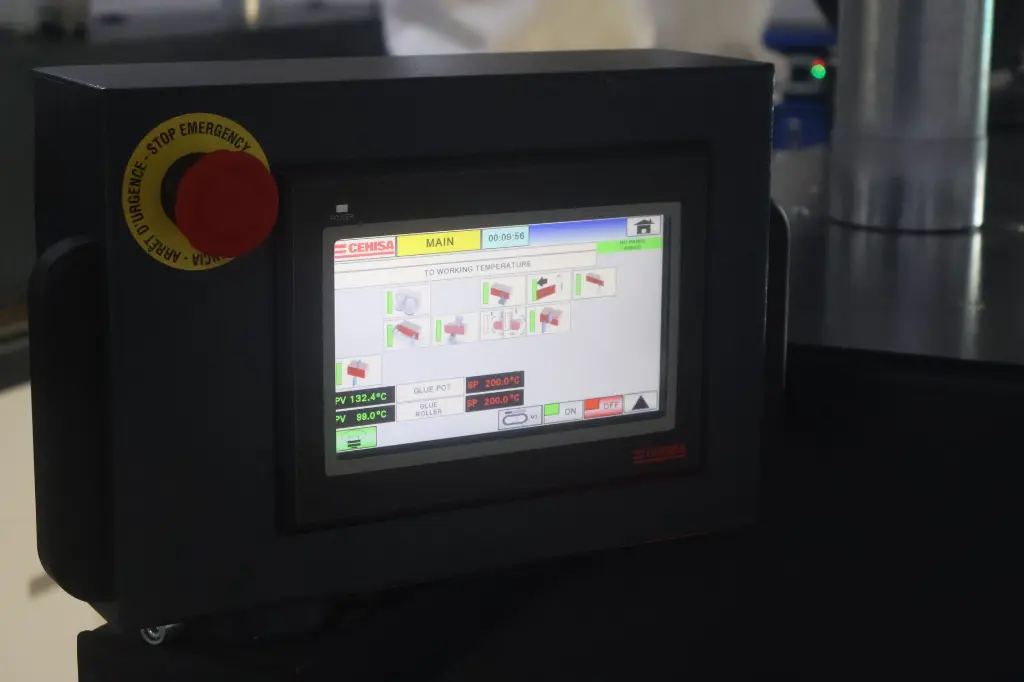

Touch Screen
The user-friendly interface offers simple navigation for starting, stopping, and adjusting programs, while a direct PLC connection provides real-time visibility of parameters, alarms, and diagnostics. With 128 MB of memory for storing programs and screen settings, multi-language support, and built-in maintenance reminders, the system is designed for ease of use and reliable day-to-day operation.

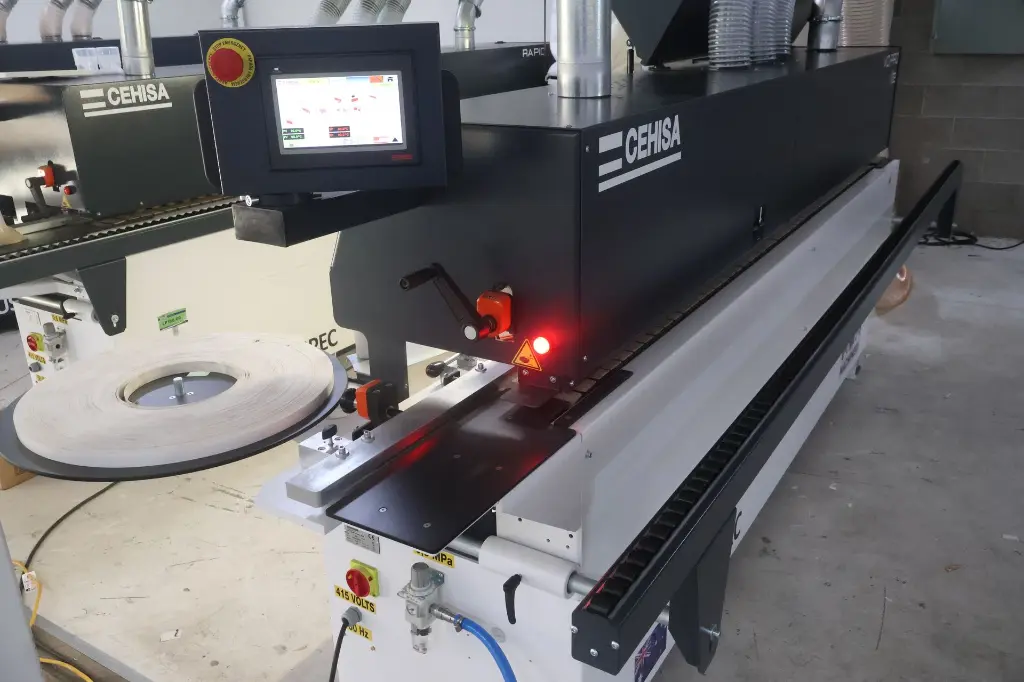

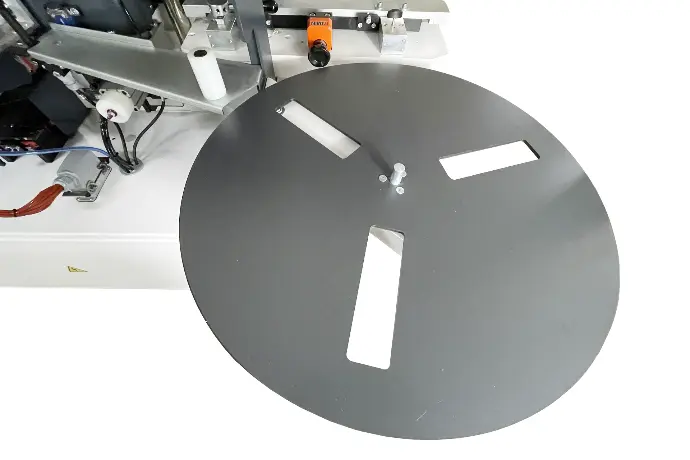

Coil Holder
Heavy-duty coil holder designed to securely support rolled edge banding, ensuring smooth, tangle-free delivery into the timed automatic feed system for consistent performance.

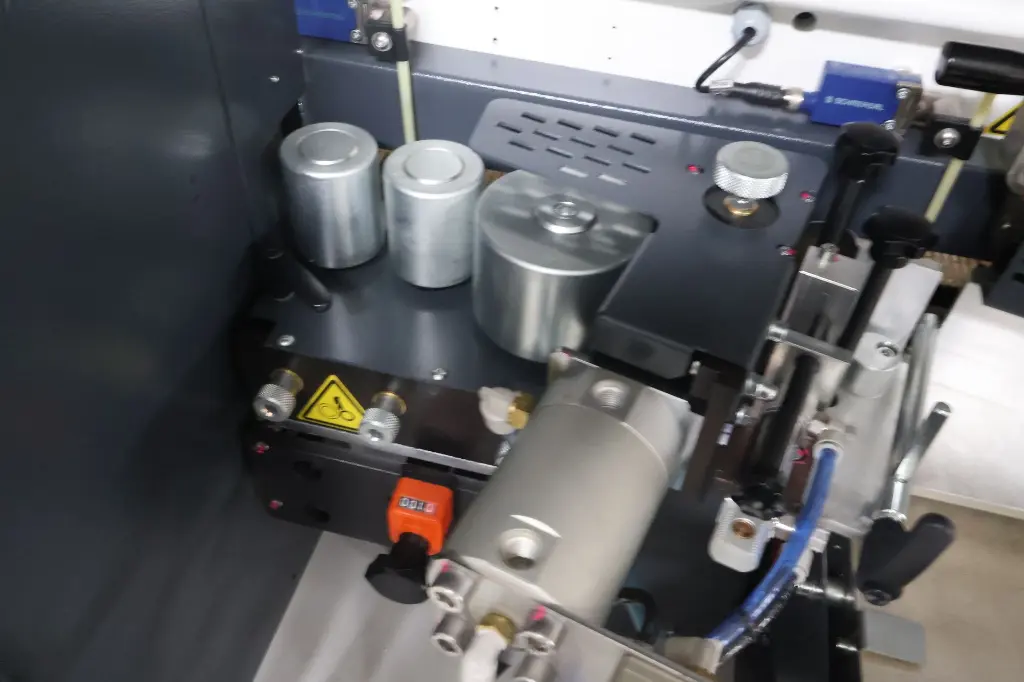

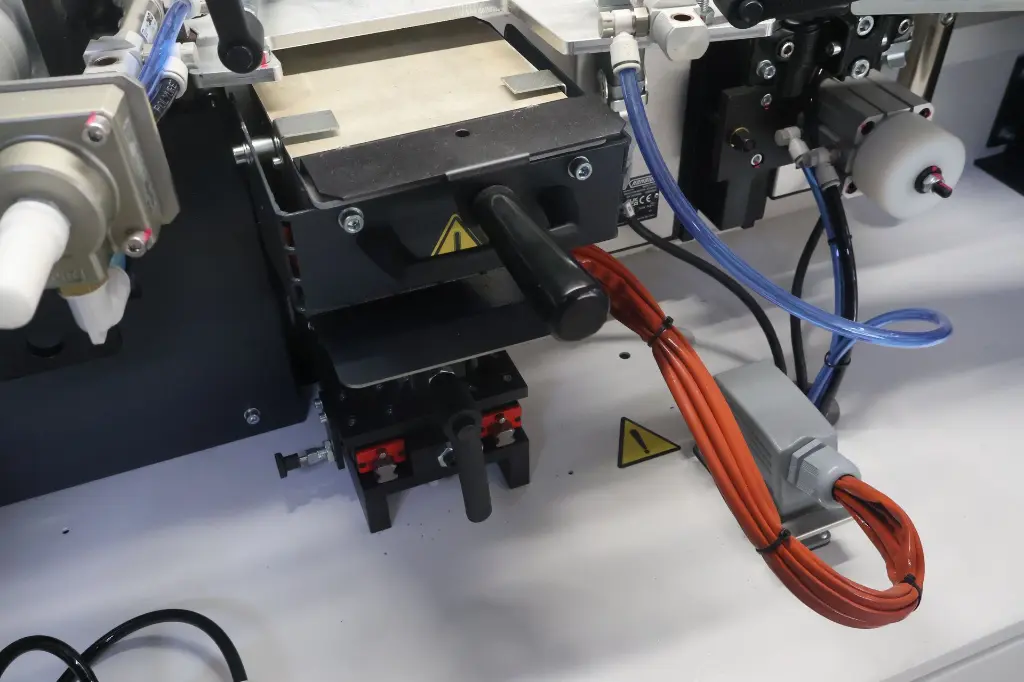

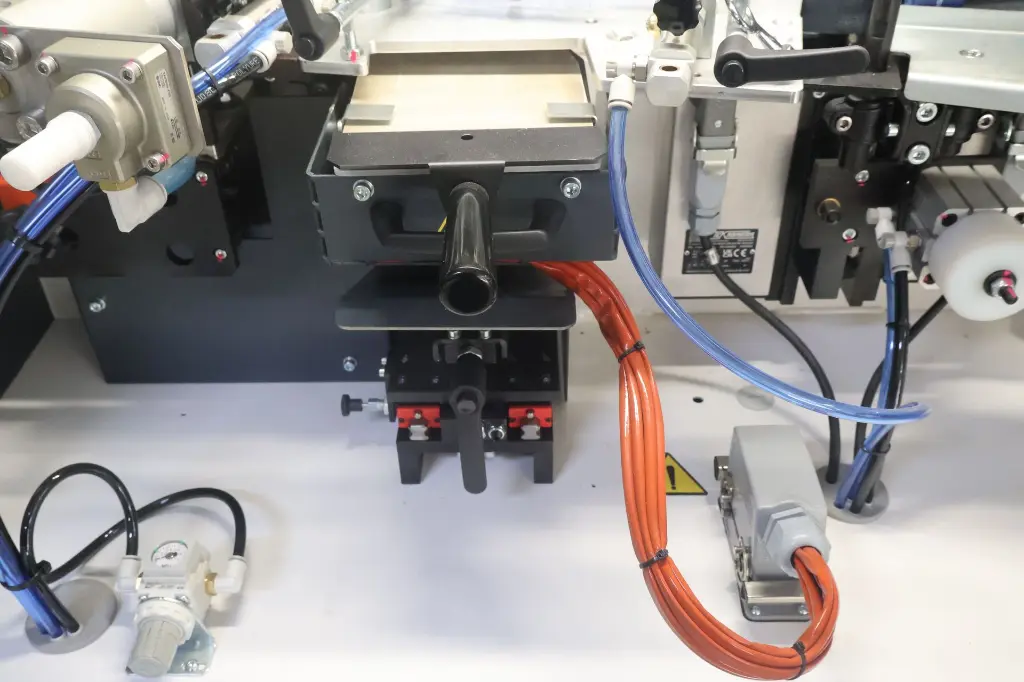

Teflon Coated Glue Pot
New thermodynamic design heats up faster with just 2.5 kW power use. Dual-Point Glue Injection: Heats and injects glue at both top and bottom of the roller for consistent application. (interchangeable)

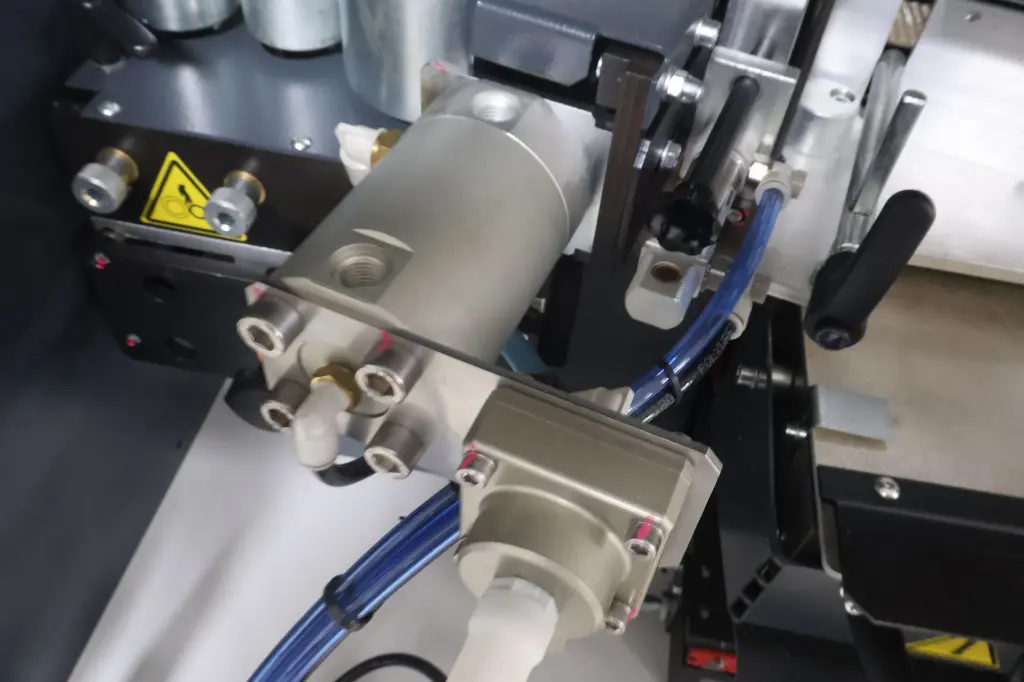

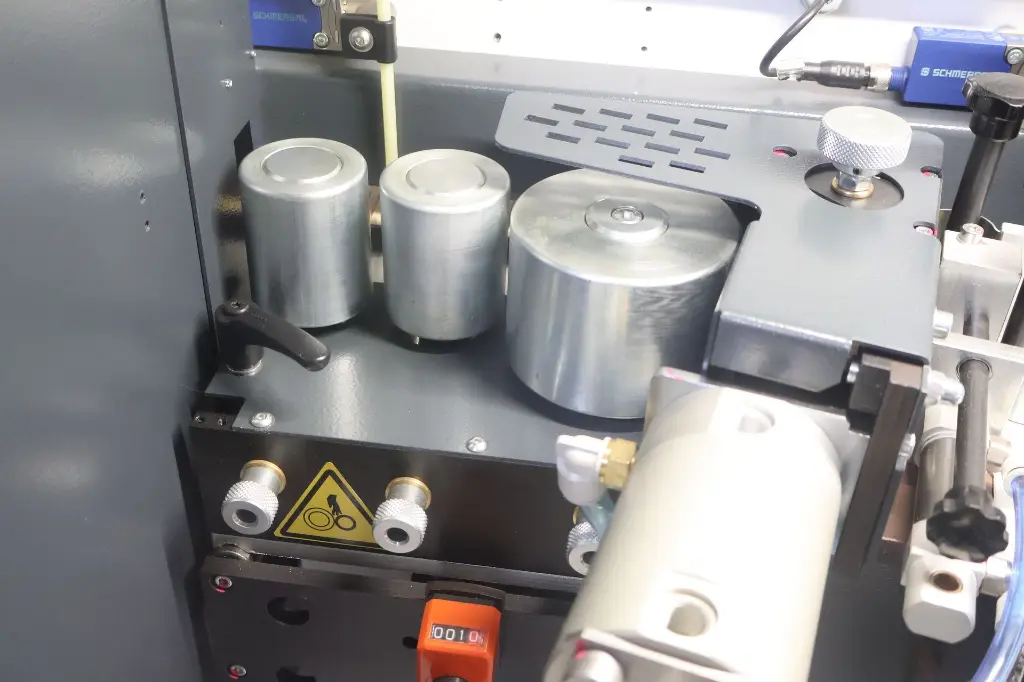

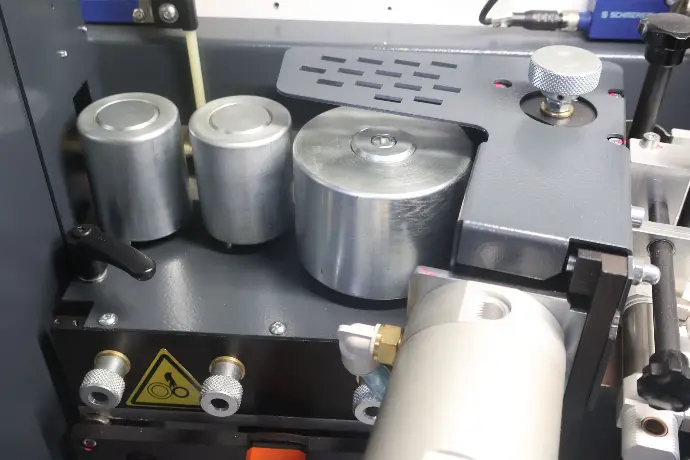

Pressure Rollers
Applies firm, even pressure to bond the edge band to the panel. Ensures consistent feed; second and third rollers are idle for smooth contact. Precisely adjusts for edge thickness from 0.4 to3 mm (up to 20 mm panel height).

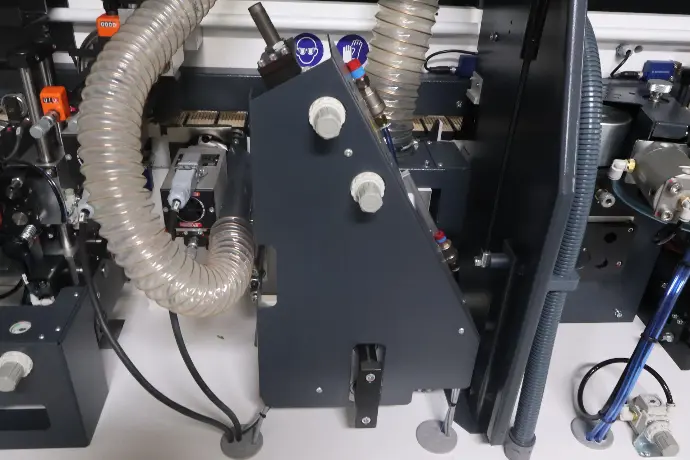

End Saws
0.2 kW at 12,000 rpm powers two saw blades for front and rear trim cuts. Smooth Runs on precision prismatic guides for clean, accurate cuts. New system directly connected to blades for cleaner operation.

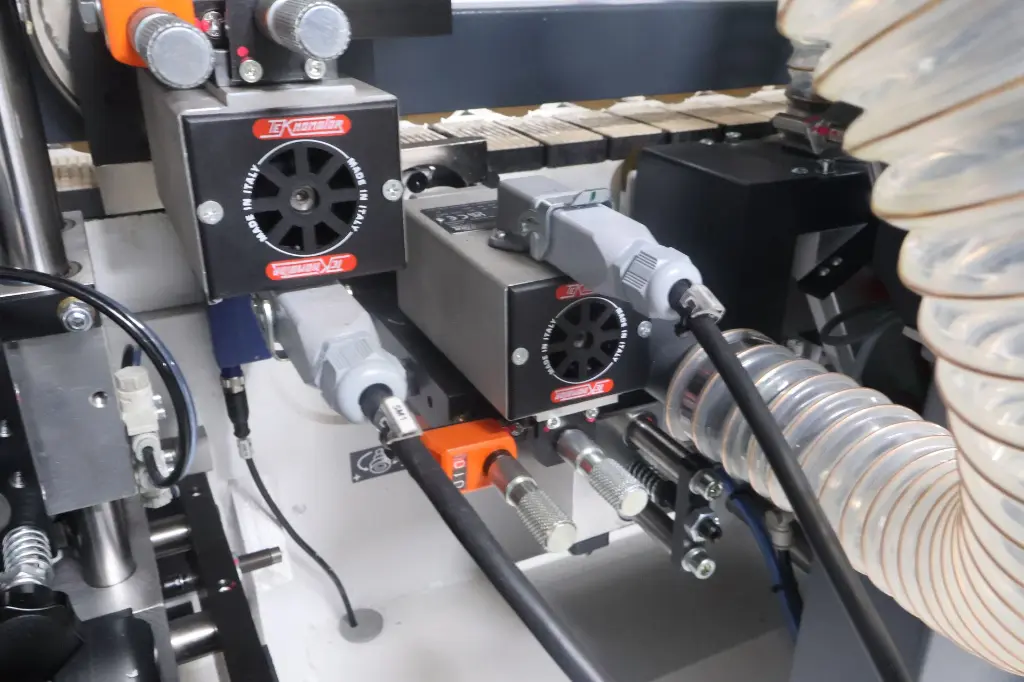

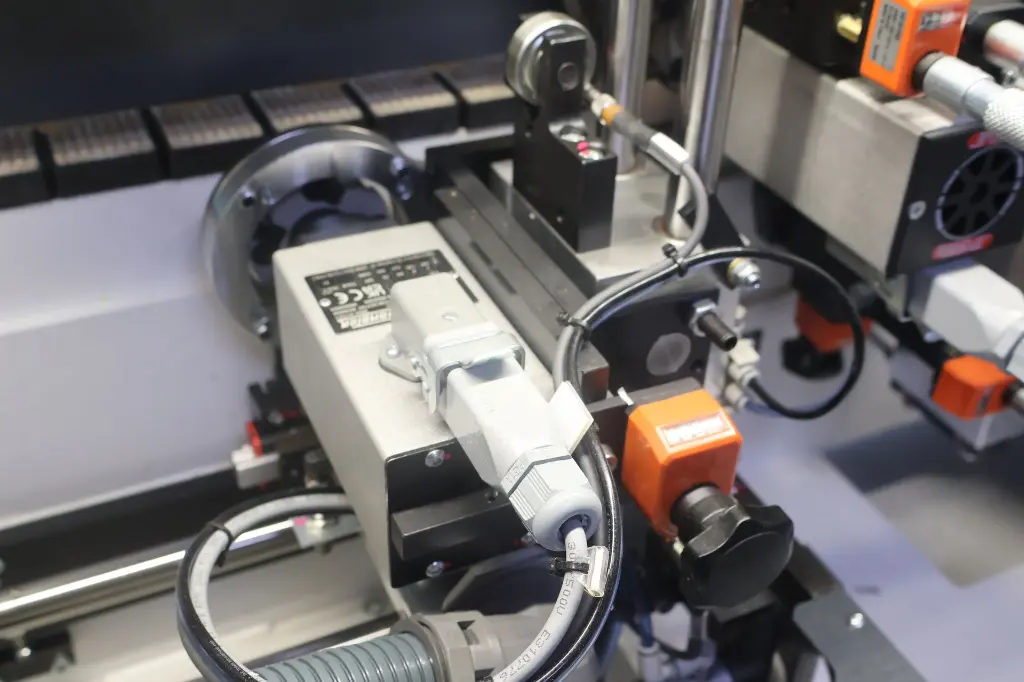

Top & Bottom Radius Trimmers
The unit features dual 0.27 kW high-frequency motors running at 12,000 rpm for precise trimming on both the top and bottom panel edges. It uses milling heads fitted with durable tungsten carbide insert blades to deliver clean, consistent finishes, while roller tracers protect high-gloss and 3D surfaces from marking. Ø65 × 20 × 20 Z4 R2 cutters with replaceable TC blades are used, and a two-position automatic adjustment system allows for fast, easy setup changes.

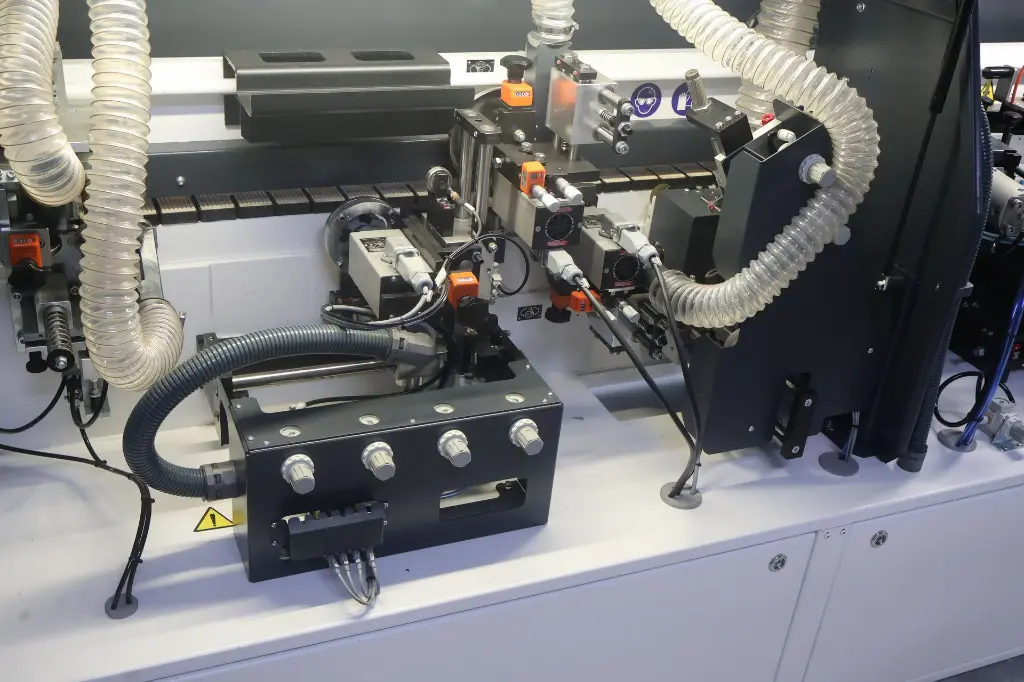

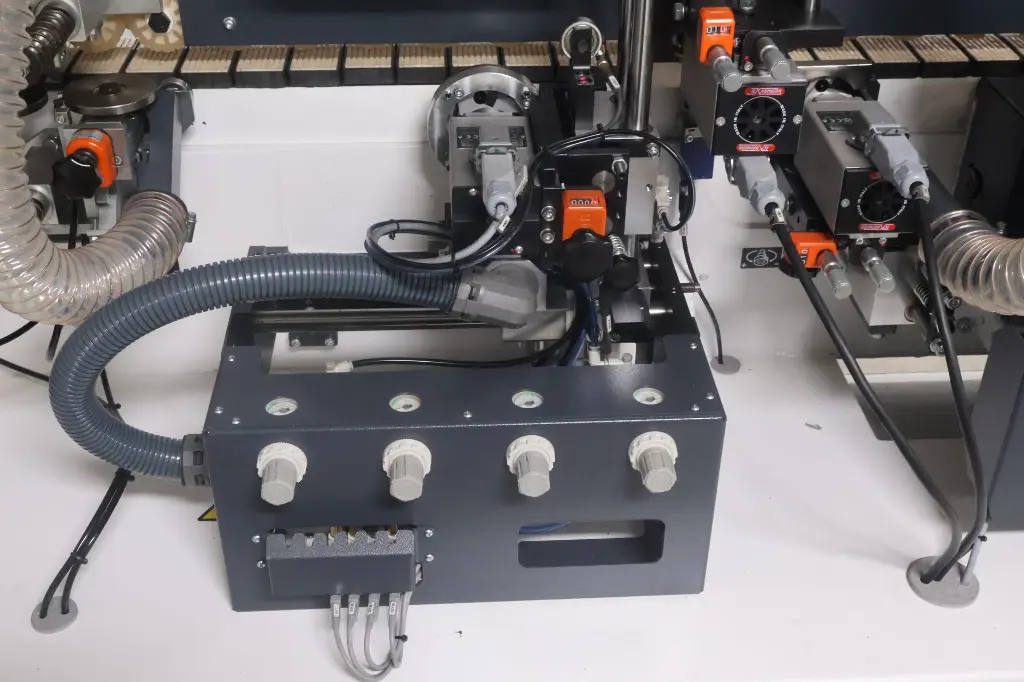

Corner Rounding
The unit provides complete 4-point corner rounding for 1–2 mm PVC or ABS edging and is best suited to flat or lightly shaped profiles. It is driven by a single 0.27 kW high-frequency motor running at 12,000 rpm, with horizontal and vertical tracers to ensure smooth, accurate curves. A minimum panel length of 200 mm is required, and it uses Ø73 × 20 × 20 Z4 R2 cutters with replaceable TC blades, supported by an updated tracer system for improved rounding accuracy.
