Cehisa Evo Pro Elite 2025 Web Test
CEHISA machines is ensured through careful component selection, in-house manufacturing, and customized after-sales service.

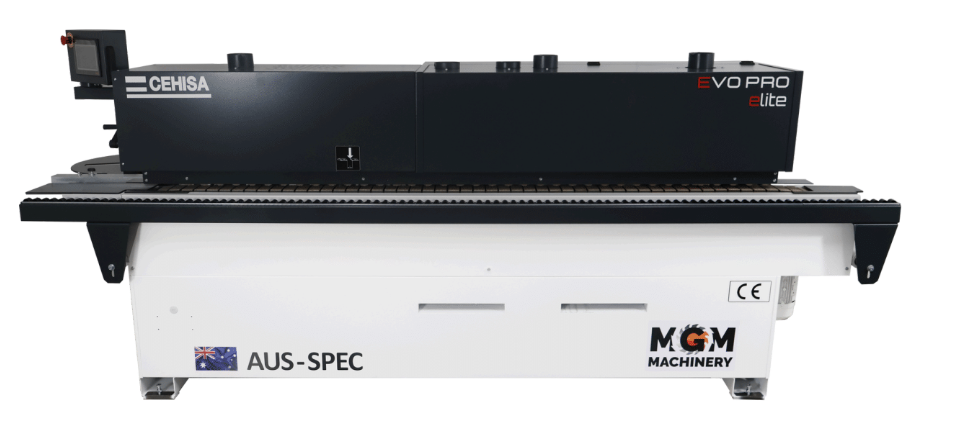

The Cehisa Evo Pro Elite is a high-performance Edge Bander engineered for precision and efficiency. It features a powerful pre-milling unit, interchangeable Teflon-coated glue pot with dual-point injection, and a 3-roller pressure system for reliable bonding. With corner rounding, top and bottom radius trimmers, and patented scrapers, it delivers a flawless finish even on high-gloss panels. The intuitive touch screen interface allows easy program control and real-time diagnostics, making it ideal for busy workshops demanding professional results.
|
|
|
|
|
|
|
|
|
|
COIL HOLDER
CORNER ROUNDING
PRE-MILLING
TEFLON COATED GLUE POT
FLAT SCRAPPERS| Brand: Cehisa |
- Features -
Coil Holder
Heavy-duty coil holder designed to securely support rolled edge banding, ensuring smooth, tangle-free delivery into the timed automatic feed system for consistent performance.
Teflon Coated Glue Pot
New thermodynamic design heats up faster with just 2.5 kW power use. Dual-Point Glue Injection: Heats and injects glue at both top and bottom of the roller for consistent application.
Pressure Rollers
Applies firm, even pressure to bond the edge band to the panel. Ensures consistent feed; second and third rollers are idle for smooth contact. Precisely adjusts for edge thickness from 0.4 to3 mm (up to 20 mm panel height).
End Saws
0.2 kW at 12,000 rpm powers two saw blades for front and rear trim cuts. Smooth Runs on precision prismatic guides for clean, accurate cuts. New system directly connected to blades for cleaner operation.
Top & Bottom Radius Trimmers
Milling heads with tough tungsten carbide (TC) blades for clean finishes. Safe for high-gloss and 3Dedges, preventing surface damage.
Radius Scrapers
Refines the edge radius after top and bottom trimming for a clean look. Horizontal and vertical rollers with SIKO digital counters for easy, accurate setup.
Flat Scrapers
Removes leftover glue from panel surfaces for a clean finish. Independent vertical tracers adapt to panel surface without damage. Prevents blades from touching or scratching the panel.
Nesting Tracers
Simple navigation for starting, stopping, and adjusting programs. Direct PLC link shows parameters, alarms, and diagnostics live. 128 MB memory to save screen settings and job programs. Accessible for operators of different backgrounds.
Touch Screen
Simple navigation for starting, stopping, and adjusting programs. Direct PLC link shows parameters, alarms, and diagnostics live. 128 MB memory to save screen settings and job programs. Accessible for operators of different backgrounds. Built-in software tracks service intervals and alerts.
Technical Specifications
Working Speed | 9 mts/min |
Thickness of Edge banding | 0,4 - 2mm |
Thickness of the panel | 10 - 40 mm |
Min. Length of the panel | 150 mm (200 mm with corner rounding) |
Min. Width of the panel | 70 mm |
Electrical Connection | 3 X 400 V / 50 HZ |
Dimensions | 3523 x 878 x 1370 mm |
Net weight | 795 kg |
CEHISA EDGE BANDERS
CEHISA, a Spanish company, has specialized in manufacturing woodworking machinery, particularly in the edge banding sector, since 1968.
Founded by carpenter Manuel Cuenca, CEHISA started by designing durable, compact machines that revolutionized the industry with their practicality.
Today, the reliability of CEHISA machines is ensured through careful component selection, in-house manufacturing, and customized after-sales service. High-quality components are sourced from top providers or produced internally to meet strict industrial standards.
