STK 10000 Extraction
STK 10000 Extraction System With 4 x Poly Bags

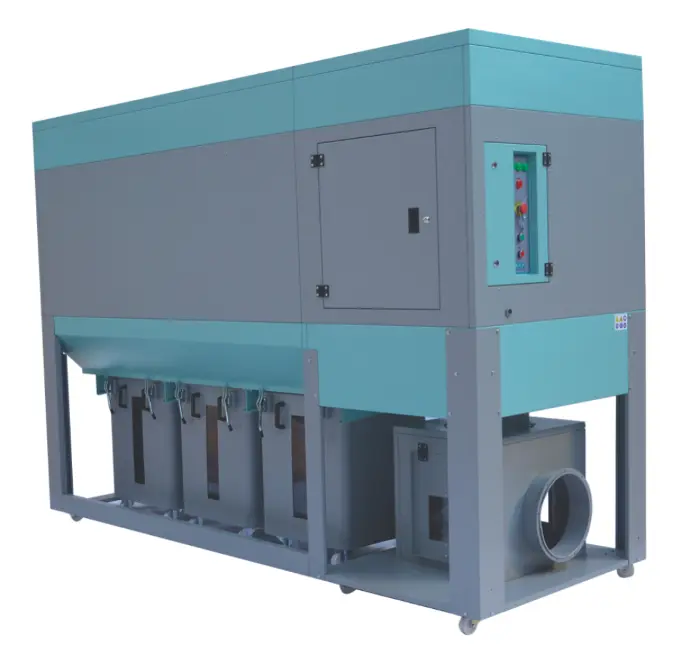

Mobile dust collector with 10,000 m3/h flow capacity, featuring durable construction and balanced propeller for reliability. Painted with electrostatic powder paint, it includes an IP55 standard IE3 high-efficiency motor. Equipped with a part separator to prevent propeller damage and reduce fire risk. Our unique design ensures longer propeller life and increased safety, setting us apart from the rest. All products meet CE standards and are design registered, including our exclusive part holder utility model.
General Specifications
General Specifications
| Product Code | S-10000 |
| Capacity | 10000 m3/h |
| Motor Power | 11 kw 15 hp 3000 RPM |
| Vacuum Velecity | 40 m/sec |
| Filter Quantity | 72 Pcs |
| Filter Sizes | Q160 x 940 mm |
| Filtration Area | 34 m2 |
| Waste Storage | 4 Pcs Q600x800 mm |
| Vacuum Diameter | Q355 mm |
| Motor Drive Type | Direct Drive |
| Unit Sizes | 1540*3360*2480 mm |
| Unit Weight | 650 kg |
| Electrical Panel | Star-Delta Starter |
