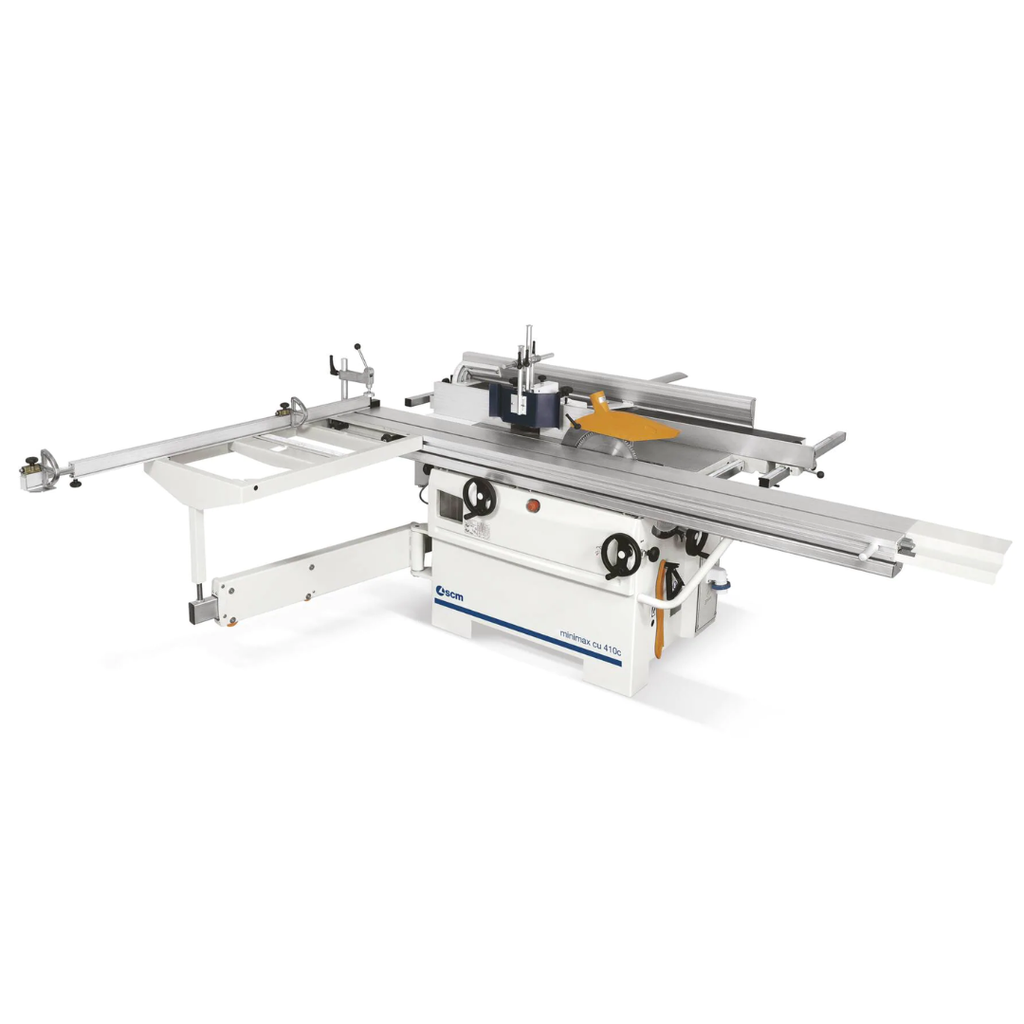

SCM Minimax CU410 Combination Machine

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.

This combination does not exist.

Brand: SCM

TECHNICAL FEATURES
Planer:
– useful working width	[mm]	410
– cutter block diameter	[mm]	72
– max. stock removal	[mm]	4
– surfacing tables total length	[mm]	1800
– thicknessing table dimensions	[mm]	605 x 410
– feed speed on thicknesser	[m/min]	7
– min. ÷ max. working height on thicknesser	[mm]	3 ÷ 230
Circular saw:
– cast iron saw-spindle moulder worktable dimensions	[mm]	1115 x 335
– blades tilting		90° ÷ 45°
– max. saw blade diam. with scoring blade installed	[mm]	315
– max. saw blade projection from table at 90°/45°	[mm]	100/78
– max. squaring stroke	[mm]	2600
– cutting width on parallel fence	[mm]	900
Spindle moulder:
– max. useful spindle length	[mm]	100
– spindle moulder speeds (at 50 Hz)	[rpm]	3500/7000/10.000
– max. tool diameter when profiling	[mm]	210
– max. diam. of tool lowered under the table at 90°	[mm]	180
Other technical features:
– three-phase motors S6		5kW (6,6hp) 50Hz
– Single-phase motors S6		Machine Special Order from Italy
– exhaust outlets diameter	[mm]	120

Spindle moulder available with following diameters:		30 mm

Weight	716 kg
Dimensions	293 × 162 × 110 cm
