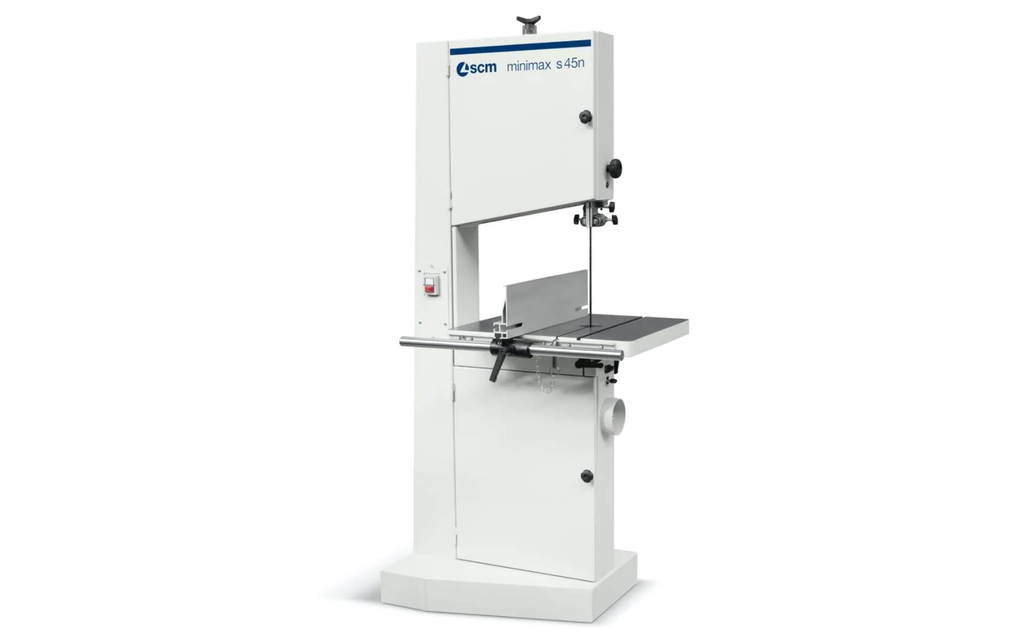

SCM Minimax S45N Bandsaw

https://www.mgmmachinery.com.au/web/image/product.template/3082/image_1920?unique=878019f

The integral parts of this bandsaw are what sets it apart.

Fitted with a large, oversized worktable, the precise movements and modern design have made the S45N the reference point

  • 450mm diameter wheels
  • 3hp, 2.2kW 240V motor
  • 440mm cutting width
  • 300mm cutting width

The integral parts of this bandsaw are what sets it apart. The cast iron wheels and worktable guarantee a solid working platform. Combine this with the high precision top and bottom blade guides (fully adjustable) and you have a machine that gives a beautiful, true cut. A large anodised aluminium fence gives a solid reference point when sawing.

$ 5,100.00 5100.0 AUD $ 5,100.00 Excluding Gst

$ 5,100.00 Excluding Gst

    This combination does not exist.

    Contact Us
    Brand: SCM

    ​

    Technical features
    – worktable dimensions[mm]600 x 520
    – worktable height from floor[mm]900
    – cast iron saw wheels diameter[mm]450
    – saw wheels[rpm]700
    – max. cutting height[mm]300
    – max. cutting width[mm]440
    – worktable tilting (CE)0° ÷ 20°
    – min./max. saw blade length[mm]3690/3742
    – min./max. blade dimensions[mm]6 x 0,5/25 x 0,5
    – Motor power  Single Phase  (Model S45N1)2.2kW (3hp) 50Hz (15 Amp Plug)
    – Or Motor power  Three Phase (Model S45N)3kW (4hp) 50Hz
    – exhaust outlet diameter[mm]120
    Weight 196 kg
    Dimensions 191 × 70 × 100 cm
