STK-5000 Extraction

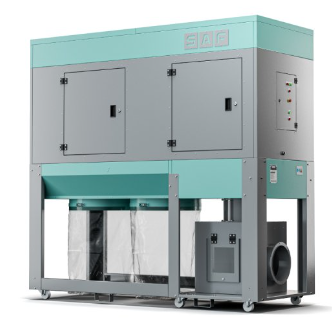

STK-5000 Extraction System With Bin & Vibration Cleaning
Mobile dust collector with 5000 m3/h flow capacity, featuring durable construction and balanced propeller for reliability. Painted with electrostatic powder paint, it includes an IP55 standard IE3 high-efficiency motor. Equipped with a part separator to prevent propeller damage and reduce fire risk. Our unique design ensures longer propeller life and increased safety, setting us apart from the rest. All products meet CE standards and are design registered, including our exclusive part holder utility model
General Specifications
General Specifications
| Product Code | STK-5000 |
| Capacity | 5000 m3/h |
| Motor Power | 5,5 kw 7,5 hp 3000 RPM |
| Vacuum Velecity | 32 m/sec |
| Filter Quantity | 32 Pcs |
| Filter Sizes | Q160 x 940 mm |
| Filtration Area | 15.11 m2 |
| Waste Storage | 2 Pcs Metal Container |
| Vacuum Diameter | Q280 mm |
| Motor Drive Type | Direct Drive |

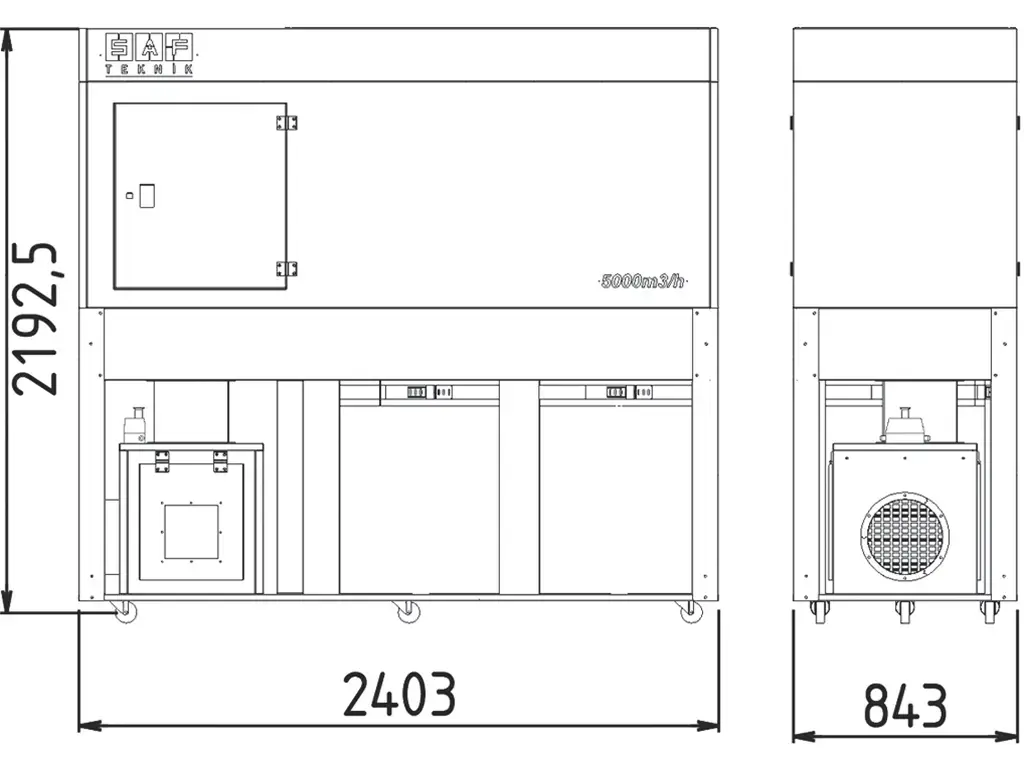

| Unit Sizes | 925*2400*2250 mm |
| Unit Weight | 440 kg |
| Electrical Panel | Star-Delta Starter |
