SVB-4000 Extraction

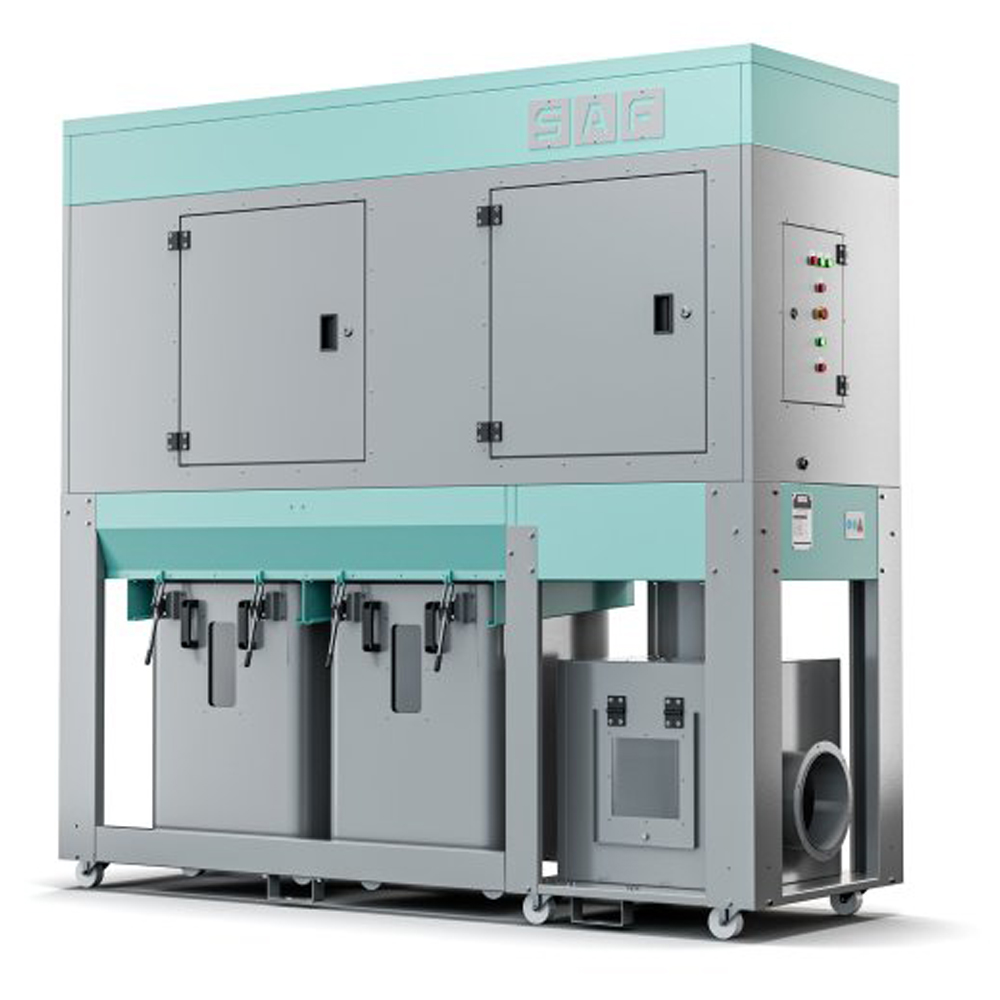

SV 4000 M/3 Extraction System With 2 x poly bags & Vibration Cleaning
SV 4000 Extraction With 2 x Poly Bags & Vibration Cleaning
Mobile dust collector with4000 m3/h flow capacity, featuring durable construction and balanced propeller for reliability. Painted with electrostatic powder paint, it includes an IP55 standard IE3 high-efficiency motor. Equipped with a part separator to prevent propeller damage and reduce fire risk. Our unique design ensures longer propeller life and increased safety, setting us apart from the rest. All products meet CE standards and are design registered, including our exclusive part holder utility model
General Specifications
Mobile dust collector with4000 m3/h flow capacity, featuring durable construction and balanced propeller for reliability. Painted with electrostatic powder paint, it includes an IP55 standard IE3 high-efficiency motor. Equipped with a part separator to prevent propeller damage and reduce fire risk. Our unique design ensures longer propeller life and increased safety, setting us apart from the rest. All products meet CE standards and are design registered, including our exclusive part holder utility model
General Specifications
| Product Code | S-4000 |
| Capacity | 4000 m3/h |
| Motor Power | 4 kw 5,5 hp 3000 RPM |
| Vacuum Velecity | 32 m/sec |
| Filter Quantity | 27 Pcs |
| Filter Sizes | Q160 x 1030 mm |
| Filtration Area | 13.97 m2 |
| Waste Storage | 2 Pcs Q600x800 mm |
| Vacuum Diameter | Q250 mm |
| Motor Drive Type | Direct Drive |
| Unit Sizes | 791*2407*2192 mm |
| Unit Weight | 300 kg |
| Electrical Panel | Cam Switch |
